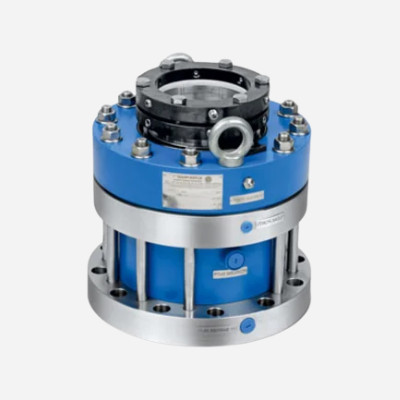

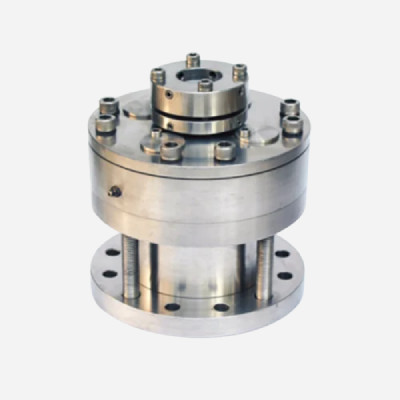

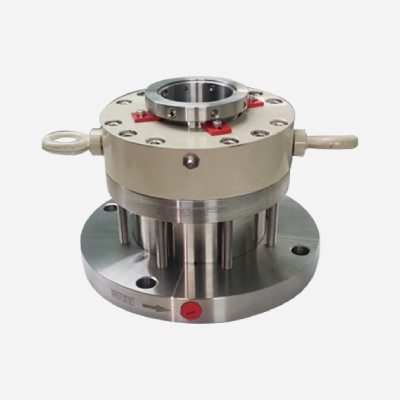

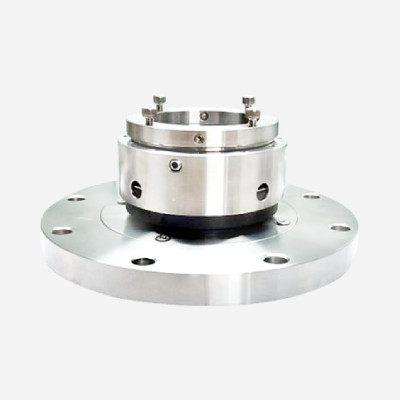

Agitator/Reactor Mechanical Seals

The agitator mechanical seals are manufactured with high accuracy and with the high quality raw materials, the techniques used in the manufacture of agitator, mechanical seals assurance that it maintains the international quality standard. The agitator mechanical seal provide air-tight sealings in the agitator.

The face seals of agitator mechanical seals are Tungsten carbide, carbon, silicon carbide, lecrolloy, ceramic. The agitator mechanical seals are used in food processing units, beverage companies, pharmaceutical industry etc.

The agitator mechanical seals come in different sizes and finishes at very reasonable rates. The seals are used on the top entry agitators as dry running seals. To protect the product from any kind of contamination at the pharma and beverage bulk drugs companies, mechanical seal for agitator are used. The seals also are made of the quality of the product and that is why they are of great importance.

The agitator seals are of great use. These seals are used in different industries based on their requirements. The role of agitator mechanical seal is simple yet important because it protects the product from mixing with the other elements.

The agitator seal types can be fitted either at the top, or at the bottom of the machinery. The position of the sales mainly depends on the process involved in the machinery. The seals are attached at the exterior part.

We provide best-class agitator mechanical seals. The seals are independently rotated in all directions and ensure smooth movement. The seals maintain a cooler temperature because of the cooling jacket and increase the shelf-life of the machinery.



Materials Used:

  • Seal Ring Face: Silicone Carbide, carbon, tungsten carbide
  • Mating Ring Face: Silicon Carbide, Tungsten Carbide
  • Secondary Seals: PTFE, Elastomers
  • Metal Parts: SS304, SS316

Applications

Petrochemical industry, Chemical industry, Pharmaceutical industry, Mixers, Non-toxic media, Food and beverage industry, Reactors, Agitators.



Operating Limits

  • Pressure: 6 Bar Vacuum
  • Teperature: +20°C to +150°C
  • Speed: Up to 60 Rpm to 400 Rpm
  • Size: Up to 40mm to 150 mm
