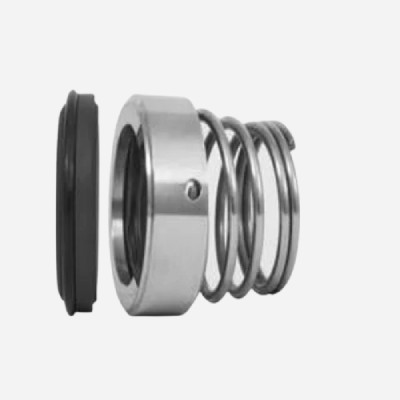

Single Spring Mechanical Seals

Single Spring Seal is a sealing device used to prevent fluid or gas leakage from mechanical equipment. It is commonly used in industries like oil and gas, chemical processing, and water treatment.

Single Spring Mechanical Seal is highly durable and reliable for multiple operating conditions. They are temperature resistant and can handle high pressures, making them suitable for several applications. Mechanical seal single spring is also effortless to install and maintain. Therefore, it is also a cost-effective solution for sealing equipment.

Talking about the design, a single spring seal traditionally constitutes a stationary element, a rotating element, and a spring. While the stationary element is attached to the equipment, the rotating element is attached to the shaft. The spring applies pressure to the sealing surfaces, creating a seal between the stationary and rotating elements.

Single Spring Seal Manufacturer in Mumbai sells Single Spring Mechanical Seal, designed for specific applications. For instance, some single spring seal can be used in high temperatures, while others are designed for low-temperature environments. Some seals are also designed for specific fluid types, like corrosive chemicals or abrasive materials.

Therefore, if you are looking for a Mechanical seal single spring, ensure to choose a product designed for the specific application requirements. This way, you can ensure that it provides a necessary level of performance and reliability. With Single Spring Seal Manufacturer in Mumbai, you can acquire high-quality seals that meet your needs.



Materials Used:

  • Seal Ring Face: Carbon, SIC TC
  • Mating Ring Face: SIC TC
  • Secondary Seals: Elastomers, PTFE
  • Metal Parts: SS 316

Applications

Chemical and pharmaceutical industry, Pulp and Paper industry, Water and Waste Water Technology, Building Services Industry, Food and Beverages Industry, and Water and Sewage Water Pumps.



Performance Range

  • Pressure: 25 Bars (Max.)
  • Temperature: -50c to +250c
  • Speed: 3000 rpm (Max)
  • Sizes: 16-100 mm
