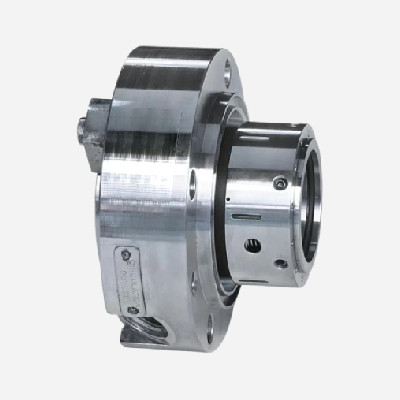

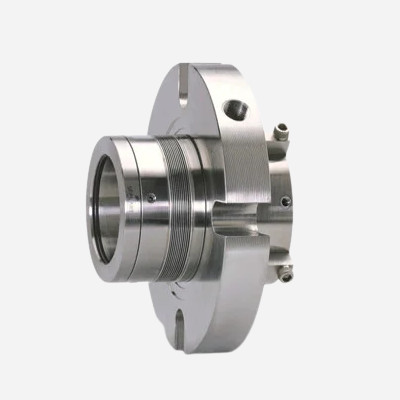

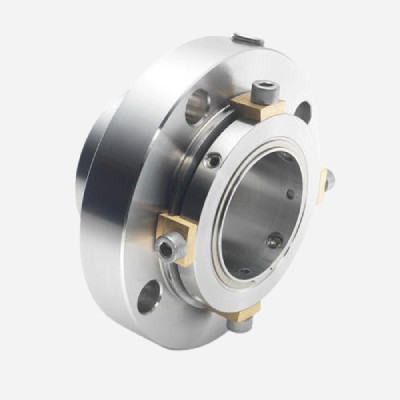

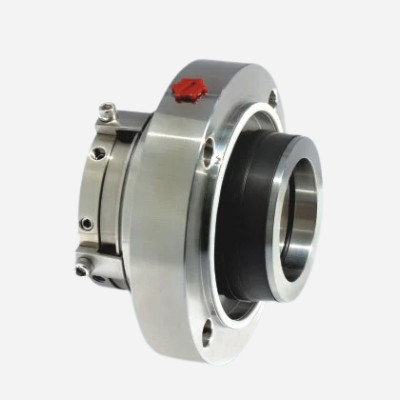

Cartridge Mechanical Seals

The cartridge mechanical seals are designed to handle any corrosive or abrasive substance. The cartridge seals are used to stop the unnecessary circulation of liquid around the seal. These seals are very advantageous as they enable them to run longer and cooler. The single cartridge seals are pre-assembled, which means they are independent of any direction.

The single mechanical cartridge seals are heavy-duty seals and have a non-clogging design. The non-clogging design prevents any clogs or small spring breaks. The mechanical cartridge seals are well known for their features, along with this. They are very easy to install and simpler to remove. The cartridge seals and Big Bore pumps perfectly fit under ANSI Standard standards. Repairing them is also very easy and won't cost your pocket much. They are available in inches and metric sizes. The different size variation helps them meet all the client's demands.

The cartridge type mechanical seals are used in dyeing industries, pharmaceuticals, petrochemicals, paper and pulp industries and slurry pumps. The single cartridge mechanical seal types are easy to install and used to prevent corrosion or erosion.

We offer a wide variety of cartridge mechanical seals. The seals are designed to meet all your requirements. They are tough and can be used as a stable solution in different industries. We are a team of professionals that manufactures the cartridge mechanical seal. These seals are designed in such a way that they can handle any corrosion and can work for high temperatures too.



Materials Used:

  • Seal Ring Face: Sic, carbon, TC
  • Mating Ring Face: TC, Sic
  • Secondary Seals: PTFE, Elastomers
  • Metal Parts: HAST-C276, SS 316, Ally 20

Applications

Chemical and Pharmaceutical industry, Pulp & paper industry, Mining and mineral industry, Petrochemical industry, Power plant technology, Mining and mineral industry, Process pumps, Food & beverage industry, Metal Process Industry.



Performance Range

  • Pressure: 25 Bars (Max.)
  • Temperature: -20c to +250c
  • Speed: 3000 RPM (Max)
  • Sizes: 18-95 mm
